Mist Cooling Fans
Misting fans are the best solution for open areas, to provide air flow and cooling with the best efficiency. The two integrated systems, ventilation and misting, together ensure the best result against the high levels of relative humidity in the hot seasons.
Heavy duty misting fans offer great benefits in industrial indoor cooling thanks to high performances and low energy consumption, if compared to standard air conditioning systems.
Our standard and exhaust fans offers high volume output and smooth, efficient operation. The heavy duty galvanized
housing is strong, compact, and easy to install. Automatic shutters are included in the exhaust models. The high velocity air pattern provides maximum cooling at the lowest electrical cost.
WALL Fans
HTC600029 - 30" (80 cm) Wall Fan
with optional 5 or 8 Nozzle Stainless Steel Mist Ring with 10/24" Nozzles. W 139 / Speed 3 / CMH 15000 / CFM 8800
HEC600001 - 24" (60 cm) Wall Fan
with optional 5 or 4 Nozzle Stainless Steel Mist Ring with 10/24" Nozzles. W 167 / Speed 3 / CMH 12500 / CFM 7300
HEC600051 - 18" (45 cm) Wall Fan
with optional 4 Nozzle Stainless Steel Mist Ring with 10/24" Nozzles. W 89 / Speed 3 / CMH 6400 / CFM 3800
| Fan type | Size | Airflow | Nozzles* | Volt |
|---|---|---|---|---|
| in / cm | CMH / CFM | min. / max. | V-Hz | |
| HTC600029 | 30" - 80cm | 15000 - 8800 | 5 - 8 | 230-50/60 |
| HEC600001 | 24" - 60cm | 12500 - 7300 | 4 - 5 | 230-50/60 |
| HEC600051 | 18" - 45cm | 6400 - 3800 | 4 | 230-50/60 |
HANGING Fans
HEC600050 - 18" (45 cm) Wall Fan
with optional 4 Nozzle Stainless Steel Mist Ring with 10/24" Nozzles. W 75 / Speed 3 / CMH 6500 / CFM 3800
| Fan type | Size | Airflow | Nozzles* | Volt |
|---|---|---|---|---|
| in / cm | CMH / CFM | min. / max. | V-Hz | |
| HEC600050 | 18" - 45cm | 6500 - 3800 | 4 | 230-50/60 |
BOX Fans
55" (138 cm) Box or Exhaust Fan
with optional 8 Nozzle Stainless Steel Mist Ring with 10/24" Nozzles. W 745 / CMH 40000 / CFM 23500
45" (115 cm) Box or Exhaust Fan
with optional 8 Nozzle Stainless Steel Mist Ring with 10/24" Nozzles. W 560 / CMH 27000 / CFM 15900
38" (96 cm) Box or Exhaust Fan
with optional 8 Nozzle Stainless Steel Mist Ring with 10/24" Nozzles. W 370 / CMH 15000 / CFM 8800
30" (80 cm) Box or Exhaust Fan
with optional 5 or 8 Nozzle Stainless Steel Mist Ring with 10/24" Nozzles. W 370 / CMH 11000 / CFM 6500
| Fan type | Size | Airflow | Nozzles* | Volt |
|---|---|---|---|---|
| in / cm | CMH / CFM | min. / max. | V-Hz | |
| 55" | 30" - 140 | 40000 - 23500 | 8 | 400 or 230 50/60 |
| 45" | 45" - 120 | 27000 - 15900 | 8 | 400 or 230 50/60 |
| 38" | 38" - 100 | 15000 - 8800 | 8 | 400 or 230 50/60 |
| 30" | 30" - 80 | 11000 - 6500 | 5 - 8 | 400 or 230 50/60 |
S.Steel Misting Rings and Accessories

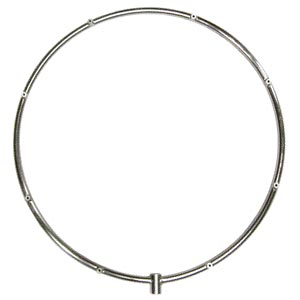

8 nozzles ring

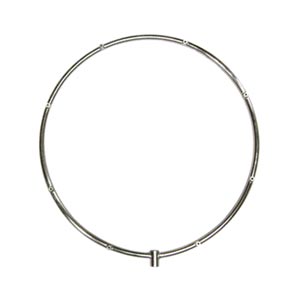

8 nozzles ring

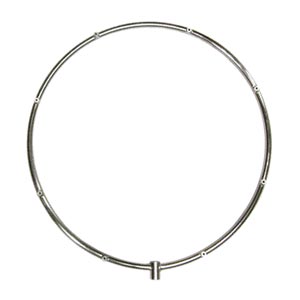

5 nozzles ring
4 nozzles ring

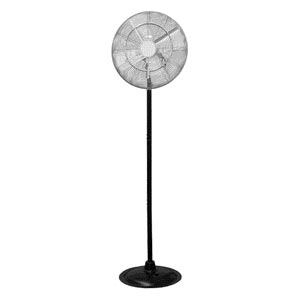

30" and 24" pedestal

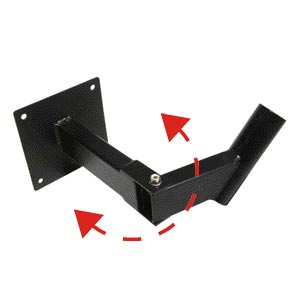

30" and 24" bracket
